Automatic Die Cutter

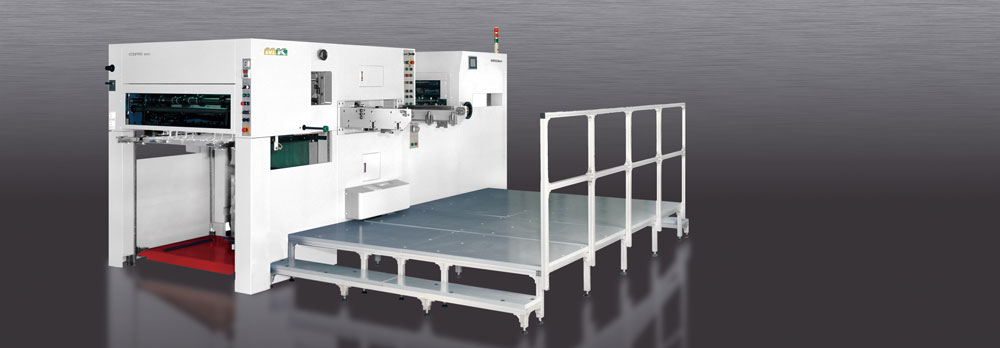

MK1050 - WITHOUT STRIPPING

Eco press MK 1050 Automatic platen Diecutting Machine is a economical model based on our study and anylyasis for print compnies. It provides you with a competitive capability at an entry level price.

MK recognized the need for low cost machine and so the ECOPRESS MK 1050 was developed, but there was a need to keep our consistent pursuance of quality. All of the improvement and innovation of Masterwork Machinary are based on the needs of its customers. MK ECOPRESS 1050 Transforms our customers business from manual & semiautomatic to fully automatic post print finishing business.

Its main Advantages are as belows.

A higher performance to price ratio.
Shorter time for adjustment.
User friendly operation.
More fuction.

Max sheet size	1050mmX750mm	41.34 x29.53 (in)
Min sheet size	450mmX360mm	17.72x14.17 (in)
Max die cutting size	1040mmX740mm	40.94x29.13 (in)
Inner chase size	1120mmX786mm	44.09x30.94 (in)
Gripper margin	9~17mm	0.35-0.67 (in)
Stock range	90~2000g/m ²cardboard
	0.1-2mm cardboard	0.0039- 0.078 (in)
	≤4mm corrugated	≤0.160 (in)
Die cutting accuracy	≤±0.075mm
Overall dimension	4700x4550x2050(mm)	16x15x7 (ft)
Max die cutting force	250 ton
Max die cutting speed	7500 s/h
Max feeder pile height	1150mm	45.28 (in)
Max delivery pile height	1000mm	39.37 (in)
Main motor wattage	11KW
Full load wattage	16.9KW
Air requirement	0.6~0.7Mpa, >0.37 m³/min
Net weight Approx	15 ton
Power Supply	380V ± 10%/ 50HZ/ 3-phase with grounding
In the interest of product improvement, the manufacturer reserves the right to change specifications and features without notice.
