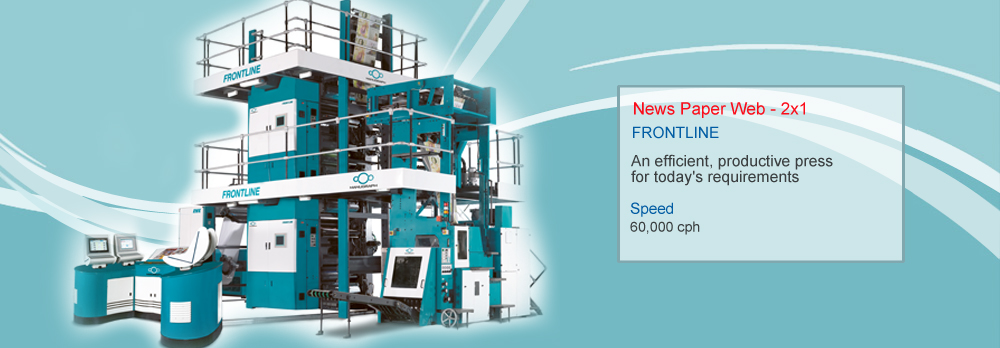

FRONTLINE : An efficient, productive press for today's requirements.
Productivity is the keynote behind the concept of FRONTLINE. Based on modular design, FRONTLINE is an economic model that meets the printing requirements of high circulation newspapers efficiently. With a maximum output of 60,000 copies per hour and an excellent price performance ratio, FRONTLINE is a leader among single width, single circumference machines.

Speed 60,000 cph, web width: 700-915 mm
Cut offs 546 mm, 560 mm & 578 mm
2-arm flying pasters for 2 reels of 1150 mm diameter each
H & 4 Hi tower modules , Arch & Reverse arch architecture
Bearers on plate & blanket cylinders
Both cylinders mounted on 3-race bearings
Conventional rubber blankets
Toolless plate lockup, reel rod blanket lockup
9-roller inking system with two forme rollers of differing diameters
3-roller spray dampening
Manucolor remote controlled ink duct, CIP3 compatible
Closed loop register system, field-bus pneumatic system
Shaftless drive (2 motors per tower); shaftless infeed for each web
2:3:3 folder for output of upto 96 pages tabloid
Water-cooled oscillator option
