News Paper Web - 2x1 - HILINE
line

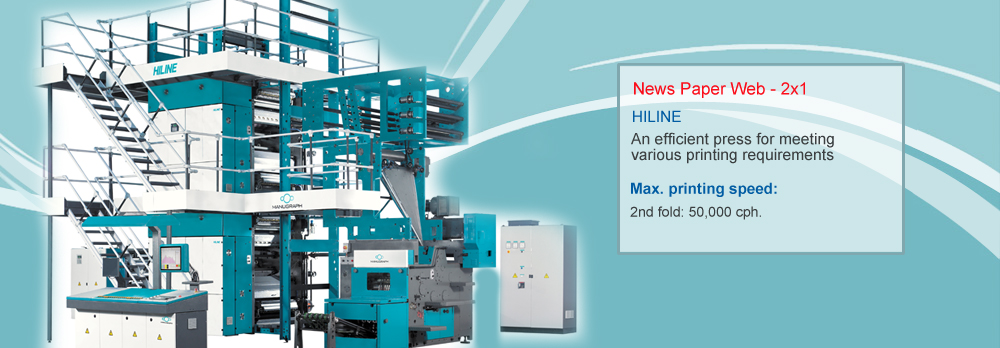

HILINE : An efficient press for meeting various printing requirements

Max. printing speed : 2nd fold: 50,000 c.p.h.
Max. reel diameter AP 4542: 1067 mm (42 inches);
AP 6050: 1270 mm (50 inches)
Max. web width 915 mm (36 inches)
Printing unit modules H and 4 Hi Tower with vertical web leads, I type and Y type horizontal web leads
Cut-off length 533, 546, 560, 578mm (21, 211/2, 22, 223/4 Inches)
Plate mounting Toolless slot mounting
Flying Splicer / Autopaster bulletAP 4542 or AP 6050 for Tower
bulletIntegrated paster for 1/Y
Data management PLC based
Folder F222 F233 F1240
Max No. of webs 6 webs / 45,000 12 webs / 50,000 12 webs / 50,000
Quarter Fold 4 webs / 30,000 6 webs / 40,000 8 webs / 35,000
Double parallel fold 2 webs / 30,000 5 webs / 40,000 No
Balloon Former 2 webs / 1 Balloon 4 webs / 2 Balloons 6 webs / 2 Balloons
Optionals bulletShaftless drive
bulletClose loop registration & cut-off control system
bulletManuColor remote ink zone control
bulletCIP3 Interface to ManuColor for Ink presetting
bulletTurner bar
bulletBay window
bulletSpray Dampening
HILINE
