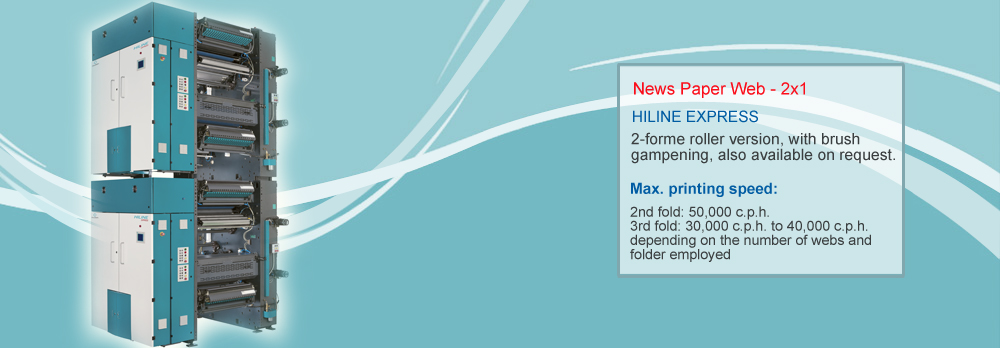

News Paper Web - 2x1 - HILINE EXPRESS
line
Max. printing speed : 2nd fold: 3rd fold: 50,000 c.p.h.
30,000 c.p.h. to 40,000 c.p.h. depending on the number of webs and folder employed
Max. reel diameter 1270mm (50 inches)
Max. web width 915mm (36 inches)
Printing unit modules Mono, H and 4 Hi Tower with vertical web leads; arch & reverse arch architecture
Cut-off length 533, 546, 560, 578mm (Inches= 21", 211/2", 22", 223/4")
Inking System 10 roller ink train, with 3 forme rollers of differing diameters and 3 oscillators
Dampening System Spray dampening
Plate mounting Toolless slot mounting
Flying Splicer AP 6050 (with 2 full reel holding capacity) Placement option - Inline, 90°, basement.
Choice of Jaw folders F1240, F233 folders, for upto 12 webs (48 pages broadsheet, 96 pages tabloid) & F222 upto 6 webs
Data management PLC based
Optionals bulletAngle bar modules
bulletClose loop register and cut off control
bulletCentralized ink feeding system with ink level controllers
bulletWater- cooled oscillators
bulletManucolor remote ink zone control system& CIP3 interface
Detachable shaft
bulletShaftless drive
bulletUpper former (Balloon)
bulletStitching attachment
bulletQuarter Fold
bulletDouble Parallel fold
bulletUV Curing /Heatset drying system
* 2-forme roller version, with brush dampening, also available on request.
